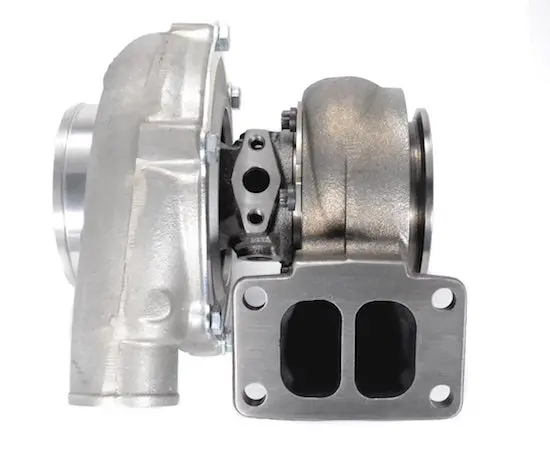

Gen2 Garrett GTX3582R Turbocharger with Divided 1.06 A/R T3 Turbine Housing and 3-Inch V-Band Exhaust Exit

Description

PRODUCT DESCRIPTION:

Garrett GEN2 GTX3582R dual ball bearing turbocharger. Advanced GEN2 billet compressor wheel capable of 850HP!
The Garrett GEN2 GTX3582R fits turbine housings for Garrett GT35 and GTX35 series turbochargers with a 68mm inducer and 84 trim turbine wheel.
PRODUCT FEATURES:

Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel

Forged billet aluminum compressor wheel

Dual ball bearing CHRA rotating assembly

PRODUCT SPECIFICATIONS:

Compressor Wheel Inducer: 66mm

Compressor Wheel Exducer: 82mm

Compressor Wheel Trim: 64

Compressor Housing A/R: 0.70, T04S Frame: 4″ in / 2.5″ out

Turbine Wheel Inducer: 68mm

Turbine Wheel Exducer: 62mm

Turbine Wheel Trim: 84

TURBINE HOUSING OPTIONS:

Ni-Resist V-Band Inlet & Outlet. Available in .61, .83 or 1.01 A/R

ALTERNATIVE TURBINE HOUSING OPTIONS:

• T4 Inlet and 3.0″ GT V-Band Outlet. Available in .63, .82, or 1.06 A/R Product Code: ATP-HSG-046
• T4 Divided Inlet and 3.0″ V-Band Outlet. Available in 1.06 A/R Product Code: ATP-HSG-063
• T3 Inlet, Internally Gated, and 5 bolt Outlet. Available in .63, .82, or 1.06 A/R Product Code: ATP-HSG-037
• T3 Divided Inlet and 3.0″ V-Band Outlet. Available in .82 A/R, 1.06 A/R
• TiAL Stainless Steel V-Band Inlet & Outlet. Available in .63 A/R, .82 A/R, 1.03 A/R

INSTALLATION HARDWARE:

Coolant – Water Options (*Please call for assistance*)

Oil feed fitting with .035″ restrictor: OIL-021

Oil drain flange: FLA-010

Oil drain gasket: GSK-008

T3 Divided Inlet Flange (for Turbo Manifold): FLS-068

T3 Divided Inlet Gasket: GSK-015

V-Band 3 Inch Outlet Flange (for Downpipe): FLS-063

V-Band Outlet Clamp: CLA-013

NOTE: Alternate coolant and oil fittings and flanges are available.
COMPRESSOR & TURBINE MAPS:
