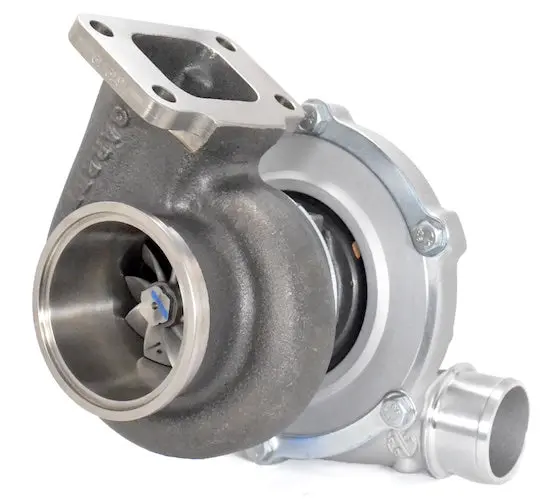

Upgraded Gen2 Garrett GTX3071R turbo featuring a durable stainless steel Tial V-band turbine housing and optimized 1.06 A/R ratio for enhanced spool and flow

Description

PRODUCT DESCRIPTION:
Garrett GEN2 GTX3071R dual ball bearing turbocharger, including Stainless Steel TiAL V-Band Inlet, V-Band Outlet, 1.06 A/R Turbine Housing. Advanced GEN2 billet compressor wheel capable of 650HP!
PRODUCT FEATURES:

Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel

Forged billet aluminum compressor wheel

Dual ball bearing CHRA rotating assembly

PRODUCT SPECIFICATIONS:

Compressor Wheel Inducer: 54mm

Compressor Wheel Exducer: 71mm

Compressor Wheel Trim: 58

Compressor Housing A/R: 0.60

Turbine Wheel Inducer: 60mm

Turbine Wheel Exducer: 55mm

Turbine Wheel Trim: 84

INSTALLATION HARDWARE:

Coolant – Water Options (*Please call for assistance*)

Oil feed fitting with .035″ restrictor: OIL-021

Oil drain flange: FLA-010

Oil drain gasket: GSK-008

8mm x 1.25 (thread pitch) Stud: FST-030

8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

V-Band Inlet Flange (for Turbo Manifold): FLS-093

V-Band Inlet Clamp: CLA-025

V-Band Outlet Flange (for Downpipe): FLS-094

V-Band Outlet Clamp: CLA-026



NOTE: Alternate coolant and oil fittings and flanges are available.
COMPRESSOR & TURBINE MAPS:
