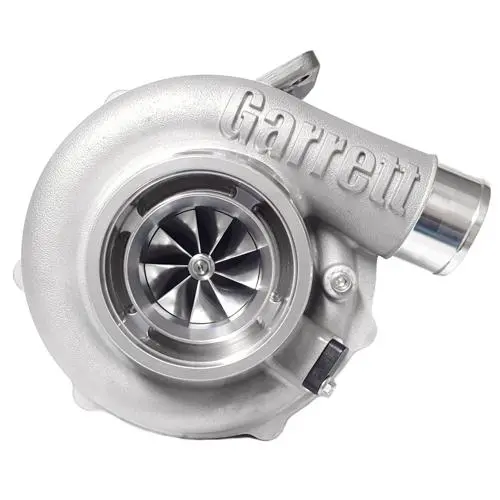

High-performance Garrett G30-900 turbocharger featuring standard rotation, optimized 0.82 aspect ratio, T4 undivided (open) turbine housing, and a robust V-band exhaust outlet for secure, leak-free installation.

Description

Product Description:

Garrett® G30-900 standard rotation turbocharger with 4″ inlet and 2″ outlet compressor housing and 0.82 A/R T4 undivided (open), v-band outlet turbine housing.

Product Features:

• New G Series compressor wheel aerodynamics
• Fully machined speed sensor and pressure ports
• Standard and reverse rotation configurations available
• Oil restrictor and water fittings included with purchase
• One piece center housing and backplate for increased durability
• 4 water jacket ports for customizable installation
• Mar-M turbine wheel material rated up to 1050° C | 1922° F

Product Specifications:

• Compressor Wheel Inducer: 62mm
• Compressor Wheel Exducer: 76mm
• Compressor Wheel Trim: 65
• Compressor Housing A/R: 0.72
• Turbine Wheel Inducer: 60mm
• Turbine Wheel Exducer: 55mm
• Turbine Wheel Trim: 84

 Installation Hardware:

T4 Inlet Gasket: GSK-006

T4 Inlet Flange (for Turbo Manifold): FLS-200

GT 3″ V-Band Outlet Flange (for Downpipe): FLS-246

Out V-Band Flange (For Down-pipe): FLS-351

Oil drain flange: FLA-010

Oil drain gasket: GSK-008

Oil drain fasteners: FST-034

Boost Pressure Port Fitting: FTG-198

Speed Sensor Kit: ACS-032

Compressor & Turbine Maps:
