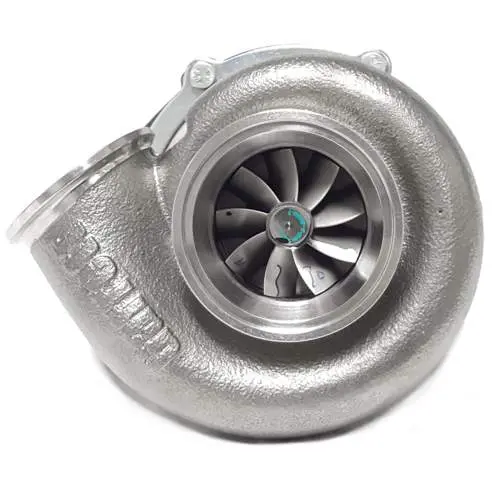

Gen2 GTX3584RS Turbocharger with Black Coating — T04E Frame, 4″ Compressor Inlet / 2.5″ Exhaust Outlet, 0.83 A/R V-Band Turbine Housing

Description

Product Description:

Garrett Gen2 GTX3584RS dual ball bearing turbocharger with a black powder coated compact special T04E frame (4″ inlet & 2.5″ outlet) compressor housing and a .83 A/R Garrett stainless steel V-Band inlet and V-Band outlet turbine housing. Same external size as the GTX3076R except has a 2.5″ high outlet hose connection instead of 2″.

The Garrett Gen2 GTX3584RS combines an advanced aerodynamic GEN2 billet compressor wheel and ultra high flow “RS” turbine wheel within compact design housings to support 1,000HP!

Product Features:

• Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel
• Ultra high flow “RS” blade profile turbine wheel
• Dual ball bearing CHRA rotating assembly
• Capable of 1,000HP

Product Specifications:

• Compressor Wheel Inducer: 67mm
• Compressor Wheel Exducer: 84mm
• Compressor Wheel Trim: 64
• Compressor Housing: T04E Frame with a 4″ inlet and 2.5″ outlet
• Turbine Wheel Inducer: 68mm
• Turbine Wheel Exducer: 62mm
• Turbine Wheel Trim: 84
• Turbine Housing: .83 A/R V-Band Inlet & V-Band Outlet

INSTALLATION HARDWARE:

Coolant – Water Options (*Please call for assistance*)

Oil feed fitting with .035″ restrictor: OIL-021

Oil drain flange: FLA-010

Oil drain gasket: GSK-008

V-Band Inlet Clamp: (product code: CLA-047

V-Band Outlet Clamp: (product code: CLA-048

GT 3″ V-Band Outlet Flange (for Downpipe): FLS-246

V-Band Inlet Flange (for Turbo Manifold): FLS-191

NOTE: Alternate coolant and oil fittings and flanges are available.

Application Notes:

• The Garrett Gen2 GTX3584RS includes a new blade profile “RS” turbine wheel and is NOT compatible with turbine housings designed for Garrett GT35, GTX35, and GTX35 GEN2 series models.
