Gen2 GTX3071R T04E Turbocharger — 4-Inlet / 2-Outlet, Anti-Surge DBB Design, .86 A/R Ratio, VB25 Internal Wastegate, GRT Turbine Housing, TBO-H67 Compressor Trim

Description

Product Description:

Garrett GEN2 GTX3071R anti-surge 4″ inlet and 2″ outlet T04E frame dual ball bearing turbocharger with .86 A/R VB25 internally gated (1 bar actuator) “GT28 style” 5 bolt into 3″ v-band turbine housing. Advanced GEN2 billet compressor wheel capable of 650HP!

Product Features:

• Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
• Forged billet aluminum compressor wheel
• Dual ball bearing CHRA rotating assembly

Product Specifications:

• Compressor Wheel Inducer: 54mm
• Compressor Wheel Exducer: 71mm
• Compressor Wheel Trim: 58
• Compressor Housing A/R: 0.60
• Turbine Wheel Inducer: 60mm
• Turbine Wheel Exducer: 55mm
• Turbine Wheel Trim: 84

INSTALLATION HARDWARE:

Coolant – Water Options (*Please call for assistance*)

Oil feed fitting with .035″ restrictor: OIL-021

Oil drain flange: FLA-010

Oil drain gasket: GSK-008

8mm x 1.25 (thread pitch) Stud: FST-030

8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

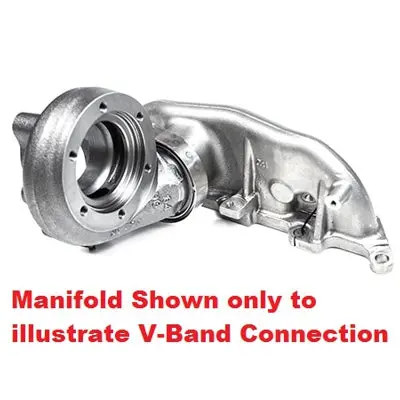

V-Band Inlet Flange (for Turbo Manifold): FLS-093

V-Band Inlet Clamp: CLA-025

V-Band 3 Inch Outlet Flange (for Downpipe): FLS-063

V-Band Outlet Clamp: CLA-013

 NOTE: Alternate coolant and oil fittings and flanges are available.
