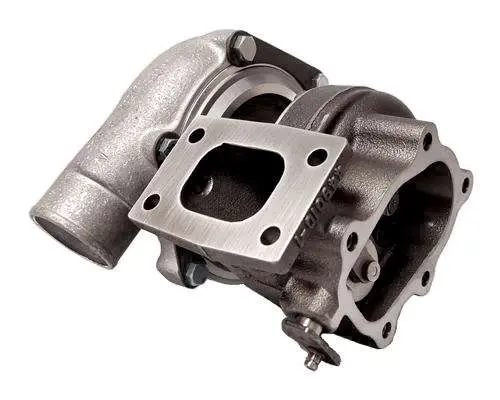

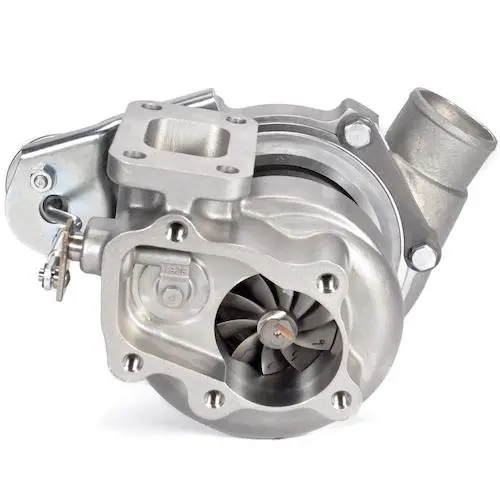

Gen2 Garrett GTX3076R Turbocharger with Stainless Steel Compact Compressor Housing, 0.64 A/R T25 IWG Turbine Housing, 5-Bolt Mounting, and Adjustable 1-Bar Wastegate Actuator

Description

PRODUCT DESCRIPTION:

Garrett Gen2 GTX3076R dual ball bearing turbocharger with compact compressor housing & stainless .64 AR T25 IWG 5 bolt turbine housing with a 1 bar actuator. Advanced GEN2 billet compressor wheel capable of 750HP!

The Garrett GEN2 GTX3076R fits turbine housings for Garrett GT30 (standard size) and GTX30 series turbochargers with a 60mm inducer and 84 trim turbine wheel.

PRODUCT FEATURES:

• Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
• Forged billet aluminum compressor wheel
• Dual ball bearing CHRA rotating assembly

PRODUCT SPECIFICATIONS:

• Compressor Wheel Inducer: 58mm
• Compressor Wheel Exducer: 76mm
• Compressor Wheel Trim: 58
• Compressor Housing A/R: 0.60
• Turbine Wheel Inducer: 60mm
• Turbine Wheel Exducer: 55mm
• Turbine Wheel Trim: 84

COMPRESSOR HOUSING OPTIONS:

• T04E Frame, 4 inch inlet, 2 inch outlet, and machined ported shroud (standard/default option)

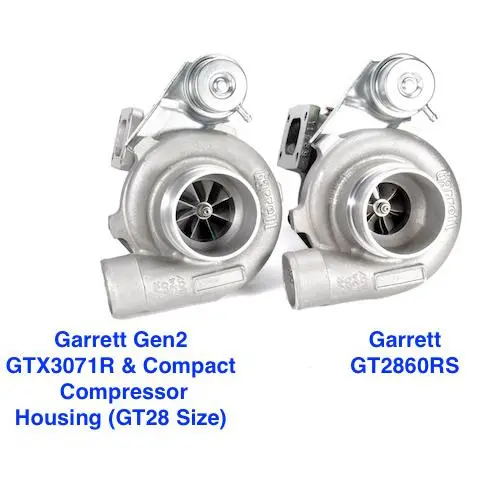

• T04B Frame, 3 inch inlet and 2 inch outlet (Alternate compact option, same layout as GT2860RS/GT2871R)

TURBINE HOUSING OPTIONS:

• Ni-Resist V-Band Inlet & Outlet. Available in .61, .83 or 1.01 A/R

ALTERNATIVE TURBINE HOUSING OPTIONS:

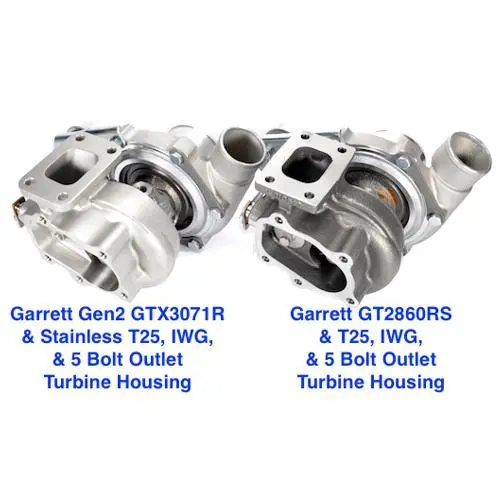

• T25 Inlet, Stainless Steel, Internally Gated, and 5 Bolt GT28 Outlet. Available in .64 A/R and .82 A/R
• T3 Inlet and 2.5″ V-Band Outlet. Available in .63 or .82 A/R Product Code: ATP-HSG-041
• T3 Inlet, Internally Gated, and 5 bolt Outlet. Available in .63, .82, or 1.06 A/R Product Code: ATP-HSG-037
• T3 Divided Inlet and 3.0″ V-Band Outlet. Available in .82 A/R, 1.06 A/R
• T4 Inlet and 3.0″ GT V-Band Outlet. Available in .63, .82, or 1.06 A/R Product Code: ATP-HSG-045
• T4 Divided Inlet and 3.0″ V-Band Outlet. Available in 1.06 A/R Product Code: ATP-HSG-063
• TiAL Stainless Steel V-Band Inlet & Outlet. Available in .63 A/R, .82 A/R, 1.06 A/R

INSTALLATION HARDWARE:

Coolant – Water Options (*Please call for assistance*)

Oil feed fitting with .035″ restrictor: OIL-021

Oil drain flange: FLA-010

Oil drain gasket: GSK-008

8mm x 1.25 (thread pitch) Stud: FST-030

8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

T25 Inlet Flange (For Turbo Manifold): FLS-037

T25 Inlet Gasket (For Turbo Manifold): GSK-004

5 Bolt “GT28” Outlet Flange (for Downpipe): FLS-088

5 Bolt “GT28” Outlet Gasket: GSK-016

 NOTE: Alternate coolant and oil fittings and flanges are available.
COMPRESSOR & TURBINE MAPS:
