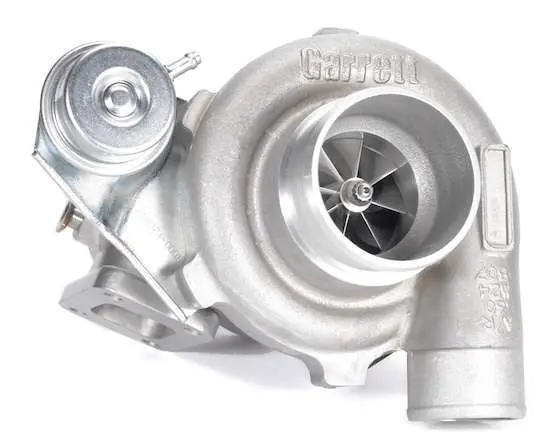

Gen2 Garrett GTX3071R Turbocharger – Compact Compressor Housing, Stainless Steel 0.86 AR Turbine Housing, T25 IWH 5-Bolt Configuration, 1-Bar Wastegate Actuator

Description

PRODUCT DESCRIPTION:

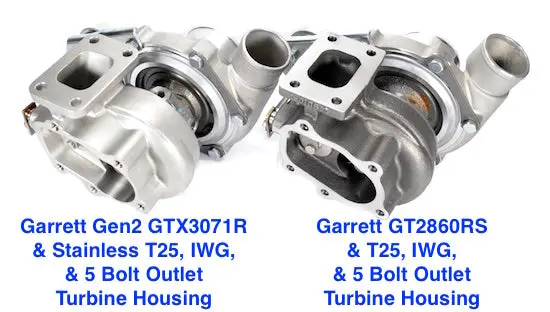

Garrett GEN2 GTX3071R dual ball bearing turbocharger configured as a direct drop-in upgrade for existing setups with a Garrett GT2860RS or GT2871R including T25 Inlet, internally gated, and 5 bolt outlet turbine housing! Advanced GEN2 billet compressor wheel capable of 650HP!

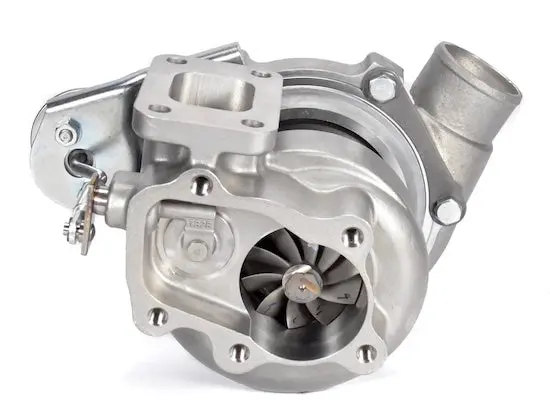

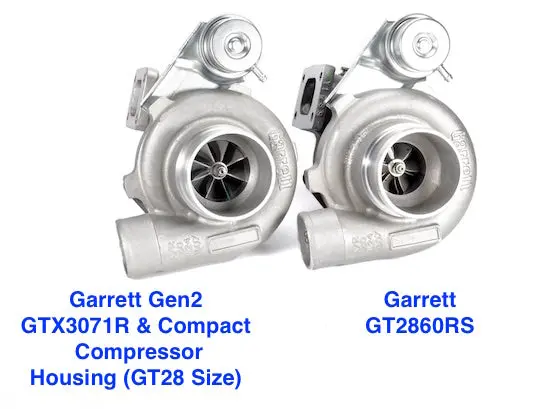

The direct “drop-in” Garrett GEN2 GTX3071R includes a compact GT28 size (T04B frame) compressor housing with a 3″ inlet and 2″ outlet; a stainless steel .86 A/R T25 Inlet, internally gated, & 5 bolt outlet turbine housing; and a 1 BAR (12-14PSI) wastegate actuator.
PRODUCT FEATURES:

Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel

Forged billet aluminum compressor wheel

Dual ball bearing CHRA rotating assembly

PRODUCT SPECIFICATIONS:

Compressor Wheel Inducer: 54mm

Compressor Wheel Exducer: 71mm

Compressor Wheel Trim: 58

Compressor Housing A/R: 0.60

Turbine Wheel Inducer: 60mm

Turbine Wheel Exducer: 55mm

Turbine Wheel Trim: 84

INSTALLATION HARDWARE:

Coolant – Water Options (*Please call for assistance*)

Oil feed fitting with .035″ restrictor: OIL-021

Oil drain flange: FLA-010

Oil drain gasket: GSK-008

8mm x 1.25 (thread pitch) Stud: FST-030

8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

T25 Inlet Flange (For Turbo Manifold): FLS-037

T25 Inlet Gasket (For Turbo Manifold): GSK-004

5 Bolt “GT28” Outlet Flange (for Downpipe): FLS-088

5 Bolt “GT28” Outlet Gasket: GSK-016

 NOTE: Alternate coolant and oil fittings and flanges are available.
COMPRESSOR & TURBINE MAPS:
