Garrett G25-660 T25 Turbocharger – Internally Wastegated, 0.49 A/R Turbine Housing (Part #877895-5002S, GRT-TBO-643)

Description

Product Description:

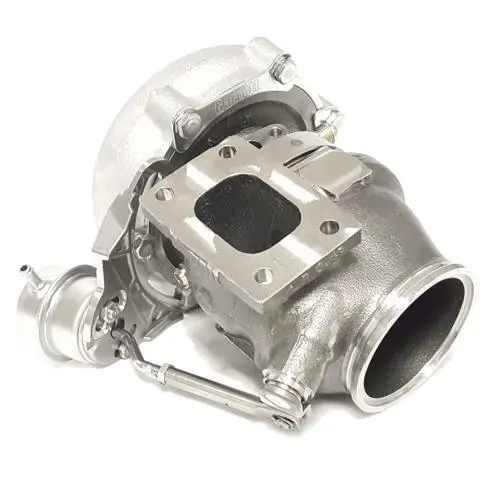

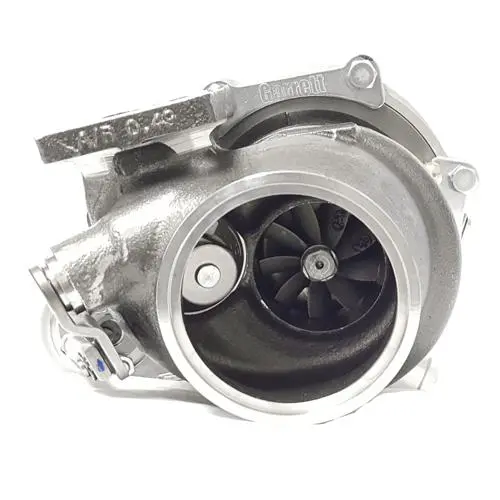

The Garrett G-Series G25-660 advanced small frame ball bearing turbocharger; including a Garrett stainless steel T25 Inlet, V-Band Outlet, & Internal Wastegate .49 A/R turbine housing (Garrett Part #877895-5002S). 660HP from a small frame package!

• Ultra High Flow G-Series Compressor Wheel
• Evolutionary aero G-Series Turbine Wheel made from high heat resistance Mar-M Alloy, 1050 Celsius Rating
• Includes -4AN oil feed fitting and -6AN coolant/water fittings

Product Specifications:

• Compressor Wheel Inducer: 54mm
• Compressor Wheel Exducer: 67mm
• Compressor Wheel Trim: 65
• Compressor Housing Inlet: 3 Inch Diameter
• Compressor Housing Outlet: 2 Inch Diameter
• Compressor Housing A/R: .70
• Turbine Wheel Inducer: 54mm
• Turbine Wheel Exducer: 49mm
• Turbine Wheel Trim: 84
• Turbine Housing Inlet: 3 Inch O.D. V-Band
• Turbine Housing Outlet: 3.55 inch O.D. V-Band
• Includes Oil Feed (1mm) Restrictor Fitting to -4AN
• Includes two Coolant Fittings to -6AN

INSTALLATION HARDWARE:

T25 Inlet Flange (For Turbo Manifold): ATP-FLS-037

T25 Inlet Gasket (For Turbo Manifold): ATP-GSK-004

Out V-Band Flange (For Down-pipe): FLS-351

Oil drain flange: FLA-010

Oil drain gasket: GSK-008

Oil drain fasteners: FST-034

Boost Pressure Port Fitting: FTG-198

Speed Sensor Kit: ACS-032

Compressor & Turbine Maps:
