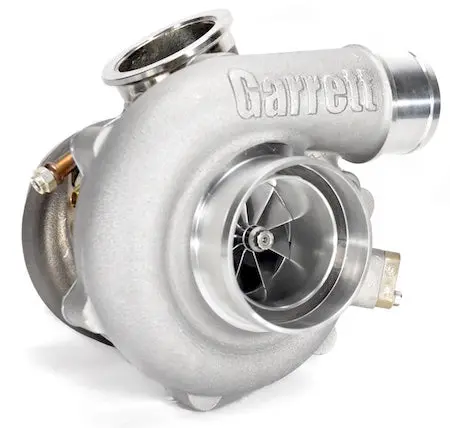

Garrett G25-660 standard-rotation turbocharger featuring a robust V-band turbine housing and an optimized .72 aspect ratio for responsive performance and broad powerband efficiency.

Description

PRODUCT DESCRIPTION:

The Garrett G-Series G25-660 advanced small frame ball bearing turbocharger; including a Garrett stainless steel V-Band Inlet & V-Band Outlet .72 A/R turbine housing (Garrett Part #871389-5010S). 660HP from a small frame package!

Ultra High Flow G-Series Compressor Wheel

Evolutionary aero G-Series Turbine Wheel made from high heat resistance Mar-M Alloy, 1050 Celsius Rating

Includes -4AN oil feed fitting and -6AN coolant/water fittings

PRODUCT SPECIFICATIONS:

Compressor Wheel Inducer: 54mm

Compressor Wheel Exducer: 67mm

Compressor Wheel Trim: 65

Compressor Housing Inlet: 3 Inch Diameter

Compressor Housing Outlet: 2 Inch Diameter

Compressor Housing A/R: .70

Turbine Wheel Inducer: 54mm

Turbine Wheel Exducer: 49mm

Turbine Wheel Trim: 84

Turbine Housing Inlet: 3 Inch O.D. V-Band

Turbine Housing Outlet: 3.55 inch O.D. V-Band

Includes Oil Feed (1mm) Restrictor Fitting to -4AN

Includes two Coolant Fittings to -6AN

Includes Turbine Housing Inlet & Outlet V-Band Clamps

INSTALLATION HARDWARE:

Inlet V-Band Flange (For Turbo Manifold): FLS-350

Out V-Band Flange (For Down-pipe): FLS-351

Oil drain flange: FLA-010

Oil drain gasket: GSK-008

Oil drain fasteners: FST-034

Boost Pressure Port Fitting: FTG-198

Speed Sensor Kit: ACS-032

Compressor & Turbine Maps:
