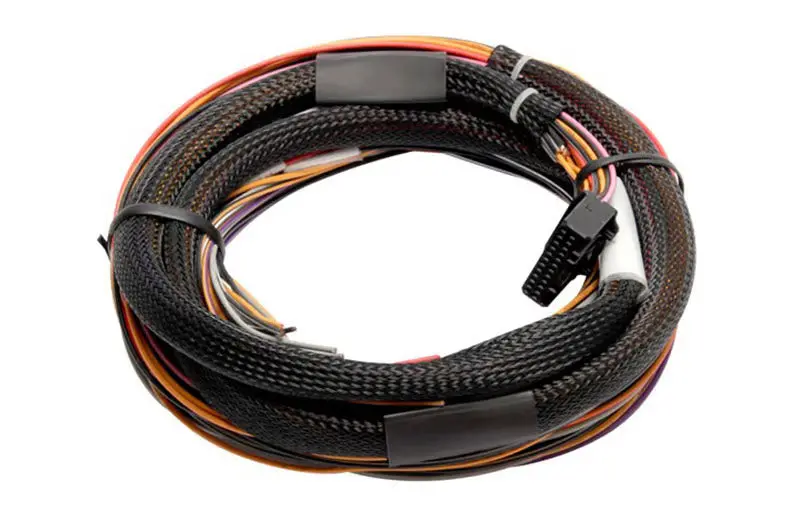

12-channel I/O expander module featuring a pre-wired flying lead harness kit, compatible with CAN ID Box B, including a 2.5-meter (8-foot) cable for flexible installation.

Description

Product Description:

IO 12 Expander Box – 2.5m/8ft Flying Lead Harness OnlyAs supplied this product is direct Plug ‘n’ Play compatible with an Elite ECU CAN port, Elite ECU Harness CAN connector or mutiple CAN device installation using an Elite 4 Port CAN HUB. If you are connecting this product with a Platinum Pro Plug-in, Sport or Sprint ECU please order a Haltech CAN Cable (8 pin Black Tyco to 8 pin Black Tyco) in a suitable length for your specific installation. If you are connecting this product with a multiple CAN device installation using a Platinum 3 or 6 port CAN HUB please order a Haltech CAN Cable (8 pin White Tyco to 8 pin White Tyco) in a suitable length for your specific installation. in a suitable length for your specific installation. Cables are available from 75mm (3″) to 3600mm (144″) Please see the product Quick Start Guide for further information on selecting the correct colour CAN cable for your specific installation.

Outputs: 4 Digital Pulsed Outputs (DPO) 4 Digital Pulsed Inputs (DPI) 4 Analogue Voltage Inputs (AVI)

Includes: IO 12 Expander with matching flying lead harness, Elite CAN cable DTM-4 to 8 pin Black TYCO – 300mm (12″)

Notes: Combine two IO 12 Expanders with different CAN Identifier ID’s (Box A or B) for up to 24 additional channels (subject to ECU compatibility)

IMPORTANT EMISSIONS NOTICE:
In many states, it is unlawful to tamper with your vehicle’s emissions equipment. Haltech products are designed and sold for sanctioned off-road/competition non-emissions controlled vehicles only and may never be used on a public road or highway. Using Haltech products for street/road use on public roads or highways is prohibited by law unless a specific regulatory exemption exists (more information can be found on the SEMA Action Network website www.semasan.com/emissions for state by state details in the USA). It is the responsibility of the installer and/or user of this product to ensure compliance with all applicable local and federal laws and regulations. Please check with your local vehicle authority before purchasing, using or installing any Haltech product.
